RT9205/RT9205A Dual Regulators - Synchronous Buck PWM DC-DC and Linear Controller

The RT9205/A is a dual-output power controllers designed for high performance graphics cards and personal computers. The IC integrates a synchronous buck controller, a linear controller and protection functions into a small 14-pin package.
The RT9205/A uses an internal compensated voltage mode PWM control for simplying design. An internal 0.8V reference allows the output voltage to be precisely regulated to meet low output voltage requirement. A fixed 300kHz oscillation frequency reduces the component size for saving board area.
The RT9205/A also features over voltage protection (OVP) and under voltage lock-out (UVLO).

Features

? Operates at 5V
? 0.8V Internal Reference
? Drives Two N-MOSFET
? Voltage Mode PWM Control
? Fast Transient Response
? Fixed 300kHz Oscillator Frequency
? Dynamic 0 to 100% Duty Cycle
? Internal PWM Loop Compensation
? Internal Soft-Start
? Adaptive Non-Overlapping Gate Driver
? Over-Voltage Protection Uses Lower MOSFET
? RoHS Compliant and 100% Lead (Pb)-Free
?
?
Application

? PC Motherboard
? Cable Modems, Set--Box, and XDSL Modems
? DSP and Core Communications Processor Supplies
? Memory Power Supplies
? Personal Computer Peripherals
? Industrial Power Supplies
? 5V Input DC-DC Regulators
? Low Voltage Distributed Power Supplies
? Graphic Cards

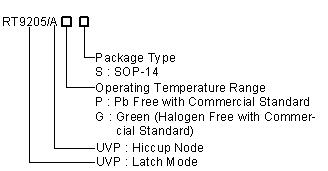

Pin Configurations
(TOP VIEW)



SOP-14

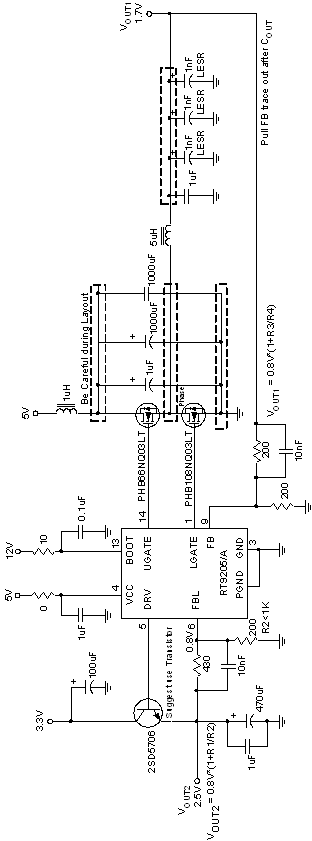

Typical Applications Circuit

Figure 1. RT9205/A powered form 5V

Figure 2. RT9205/A powered from 12V

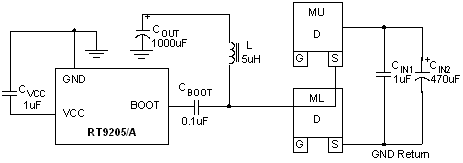

Layout Placement

Layout Notes
1. Put C1 & C2 to be near the MU drain and ML source nodes.
2. Put RT9205/A to be near the C_OUT
3. Put C_BOOT as close as to BOOT pin
4. Put C_VCC as close as to VCC pin
