Renesas 8V97003寬帶18GHz RF和微波合成器解決方案

Renesas公司的8V97003是高性能mmWave寬帶合成器/鎖相環(PLL),能從集成的壓控振蕩器(VCO)產生高達18GHz的輸出頻率,提供倍頻程的頻率調諧范圍.器件還提供高性能32位分?jǐn)?shù)反饋分頻器,輸出分頻器允許用戶能從VCO的寬帶特性獲得全部的好處.器件的品質因素(FOM)為-236dBc/Hz,極好的VCO性能有非常低的相位噪音和RMS相位抖動. 在所有工作條件下和頻率下,8V97003提供非常低的相位偏移< 10°,從而在波束成形應用中如5G無線網卡大容量MIMO系統降低無線通路再校準所發生的事情.輸出驅動器具有可編輸出功率設定,8GHz時的單端輸出功率高達+12dBm,18GHz時為+4dBm.

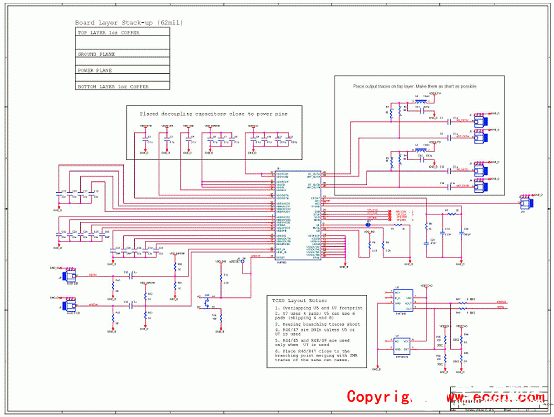

當輸出是電阻負載時,輸出驅動器提供單端輸出功率,8GHz時為+9.5dBm,12GHz時高達為-2.5dBm.工作電壓3.3V, 7 x7 mm 48-VFQFPN封裝.主要用在5G毫米波無線基礎設備,大容量MIMO,相位陣列天線和波束成形.無線骨干網,點對點和點對多點微波鏈接,衛星/VSAT,測試設備/儀表,時鐘發生器,高速RF 轉換器取樣時鐘和雷達.中電網為您整理如下詳細資料,本文介紹了8V97003主要特性,框圖,以及評估板8V97003 EVB主要特性,電路圖,材料清單和PCB設計圖.

The 8V97003 is a high-performance mmWave widebandSynthesizer / Phase Lock Loop (PLL) that generates outputfrequencies up to 18GHz from an integrated Voltage ControlledOscillator (VCO) offering an octave of frequency tuning range.

The device also offers a high-performance 32-bit frac tionalfeedback divider and an output divider to allow users to fullybenefit from the wideband characteristics of the VCO.

The device’s figure of merit (FOM) of -236dBc/Hz and theexcellent VCO performance allow for very low phase noise andRMS phase jitter.

The 8V97003 offers a very low output-to-output phase skew driftof < 10° across all operating conditions and frequencies, reducingradio path recalibration occurrences in beamforming applications,such as 5G radio card massive MIMO systems.

The output drivers have programmable output power settings andcan deliver high single-ended output power up of +12dBm at8GHz, and +4dBm at 18GHz, when using inductively loadedoutput terminations (double termination). When the outputs areresistively loaded, the output drivers can deliver a single-endedoutput power of +9.5dBm at 8GHz, and up to -2.5dBm at 12GHz.

The output power can be further increased when using differentialoutputs and measuring the output power differentially.The 8V97003 relies on a single 3.3V power supply and offers lownoise integrated LDOs for excellent power supply noise immunity.

8V97003主要特性:

? Output frequency range: 171.875MHz to 18GHz
? Ultra-low phase noise VCO
? -60.6dBc integrated phase jitter (35fs rms jitter) from 20kHzto 100MHz at 6GHz
? Figure of Merit: -236dBc/Hz
? Input reference frequency:
? 10MHz to 1.6GHz (LVPECL, LVDS)
? 10MHz to 250MHz (LVCMOS)
? Fractional-N synthesizer and integer-N synthesizer
? 32-bit of fractional and modulus resolution
? Phase frequency detector (PFD) operation up to 500MHz(Integer mode) or 250MHz (Fractional mode)
? Programmable RF output power levels
? RF output power < -80dBm when in MUTE
? Programmable input multiplier (MULT) to increase PFDfrequency when using a low input frequency
? -40°C to +95°C ambient temperature range; and up to +105°Ccase temperature
? 3.3V single power supply operation
? 7 x7 mm 48-VFQFPN package
? SPI interface is compatible with 1.8V logic and tolerant to 3.3V
? Supported in the Timing CommanderTM design tool

8V97003典型應用:

? 5G millimeter wave wireless infrastructure
? Massive MIMO
? Phase Array Antennas and beam forming
? Wireless backhaul
? Point-to-point and point-to-multipoint microwave links
? Satellites / VSATs
? Test equipment/instrumentation
? Clock generation
? High-speed RF converters sampling clocks
? Radar

圖1.8V97003框圖

評估板8V97003 EVB
?
The 8V97003 evaluation board is designed to enable customers to evaluate the functionality and performance of the 8V97003 RF/Microwave Wideband Synthesizer. The 8V97003 device on the evaluation board can be programmed and configured via a PC-based GUI, called Timing Commander, to generate output frequency from 187.5MHz to 18GHz with very low phase noise and RMS phase jitter.

This document discusses the setup of the EVB, and the programming of the 8V97003 using Timing Commander.

評估板8V97003 EVB包括:

? 8V97003 Evaluation Board
? Micro USB Cable

圖2.評估板8V97003 EVB外形圖

圖3.評估板8V97003 EVB主要功能位置圖
