數據： TMP121, TMP123: 1.50C Accurate Digital Temperature Sensor with SPI Interface 數據表

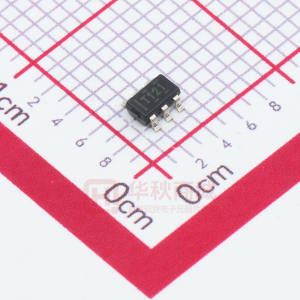

TMP121和TMP123是SPI兼容的溫度傳感器，采用纖巧的SOT23-6封裝。 TMP121和TMP123不需要外部元件，能夠在40°C至+ 125°C的溫度范圍內測量溫度在2°C范圍內的溫度。低電源電流和2.7V至5.5V的電源電壓使TMP121和TMP123成為低功耗應用的理想選擇。
TMP121和TMP123是各種通信中擴展熱測量的理想選擇，計算機，消費者，環境，工業和儀器儀表應用。
所有其他商標均為其各自所有者的財產。
| Interface |
| Local Sensor Accuracy (Max) (+/- C) |
| Temp Resolution (Max) (bits) |
| Operating Temperature Range (C) |
| Supply Voltage (Min) (V) |
| Supply Voltage (Max) (V) |
| Supply Current (Typ) (uA) |
| Supply Current (Max) (uA) |
| Features |
| Addresses |
| Rating |
| Package Group |
| Package Size: mm2:W x L (PKG) |
| Iq (Typ) (uA) |
| TMP121 | TMP122 | TMP122-EP | TMP123 | TMP124 | TMP125 |
|---|---|---|---|---|---|
| SPI, Microwire | SPI, Microwire | SPI, Microwire | SPI, Microwire | SPI, Microwire | SPI, Microwire |
| 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | 2 |
| 12 | 12 | 12 | 12 | 12 | 12 |
| -40 to 125 | -40 to 125 | -55 to 125 | -55 to 125 | -55 to 125 | -40 to 125 |
| 2.7 | 2.7 | 2.7 | 2.7 | 2.7 | 2.7 |
| 5.5 | 5.5 | 5.5 | 5.5 | 5.5 | 5.5 |
| 35 | 50 | 50 | 35 | 50 | 36 |
| 50 | 75 | 75 | 50 | 75 | 50 |
| Shutdown |
Configurable Resolution Programmable Alert Fault Queue Shutdown |
Configurable Resolution Programmable Alert Fault Queue Shutdown |
Shutdown |
Configurable Resolution Programmable Alert Fault Queue Shutdown |
Shutdown |
| NA | NA | NA | NA | NA | NA |
| Catalog | Catalog | HiRel Enhanced Product | Catalog | Catalog | Catalog |
| SOT-23 | SOT-23 | SOT-23 | SOT-23 | SOIC | SOT-23 |
| 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) | 8SOIC: 29 mm2: 6 x 4.9(SOIC) | 6SOT-23: 8 mm2: 2.8 x 2.9(SOT-23) |
| 35 | 50 | 50 | 35 | 50 | 36 |
