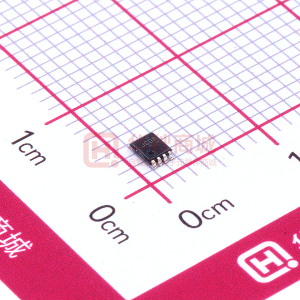

TS5A3153 1Ω SPDT 模擬開關 5V/3.3V 單通道 2:1 多路復用器/多路解復用器

數據： 1-Ohm SPDT Analog Switch 5-V/3.3-V Single-Channel 2:1 Multiplexer/Demultiplexer 數據表

描述

The TS5A3153 is a single-pole double-throw (SPDT) analog switch that is designed to operate from 1.65 V to 5.5 V. The device offers a low ON-state resistance and an excellent on-resistance matching with the break-before-make feature, to prevent signal distortion during the transferring of a signal from one channel to another. The device has an excellent total harmonic distortion (THD) performance and consumes very low power. These features make this device suitable for portable audio applications.

特性

電源關閉模式下的隔離，V ₊ = 0
指定的斷點 - 先切換
低導通電阻（1 ）
控制輸入具有5.5V容差
低電荷注入
出色的導通電阻匹配
低總諧波失真（THD）
1.65-V至5.5V單電源供電
閂鎖性能超過100 JESD 78，Class II
每個JESD 22測試的ESD性能< ul>
2000-V人體模型
（A114-B，II類）
1000-V充電設備模型（C101）

應用程序

手機
掌上電腦
便攜式儀器
音頻和視頻信號路由
低壓數據采集系統
通信電路
調制解調器
硬盤
計算機外圍設備
無線終端和外圍設備

NanoStar是德州儀器公司的商標。

參數 與其它產品相比?模擬開關/多路復用器

?
Configuration
Number of Channels (#)
Power Supply Type
Vss (Min) (V)
Vss (Max) (V)
Vdd (Min) (V)
Vdd (Max) (V)
Ron (Typ) (Ohms)
Bandwidth (MHz)
Rating
Operating Temperature Range (C)
Package Size: mm2:W x L (PKG)
Package Group
Supply Range (Max)
Ron (Max) (Ohms)
Input/Output Continuous Current (Max) (mA)
Supply Current (Typ) (uA)
Supply Current (Max) (uA)
Features
OFF-state leakage current (Max) (μA)
ON-state leakage current (Max) (μA)
Input/Output ON-state Capacitance (Typ) (pF)
Input/Output OFF-state Capacitance (Typ) (pF)
ESD Charged Device Model (kV)
ESD HBM (kV)
VIL (Max) (V)
VIH (Min) (V)
?

TS5A3153
2:1 SPDT ? ?
1 ? ?
Single ? ?
N/A ? ?
N/A ? ?
1.65 ? ?
5.5 ? ?
0.8 ? ?
100 ? ?
Catalog ? ?
-40 to 85 ? ?
See datasheet (DSBGA) 8VSSOP: 6 mm2: 3.1 x 2(VSSOP) ? ?
DSBGA VSSOP ? ?
5.5 ? ?
3.1 ? ?
200 ? ?
0.001 ? ?
0.5 ? ?
Powered off protection Break-before-make ? ?
0.15 ? ?
0.15 ? ?
57 ? ?
19 ? ?
1 ? ?
2 ? ?
0.8 ? ?
1.5 ? ?
